Solar panels for warehouse and distribution roofs

A warehouse roof is the cheapest generating site your business will ever own. We survey it, model what it can carry, and arrange the design, the grid application and the installation through our MCS-certified partner.

UK wide  /  capital, lease or PPA  /  survey first

Book a roof survey

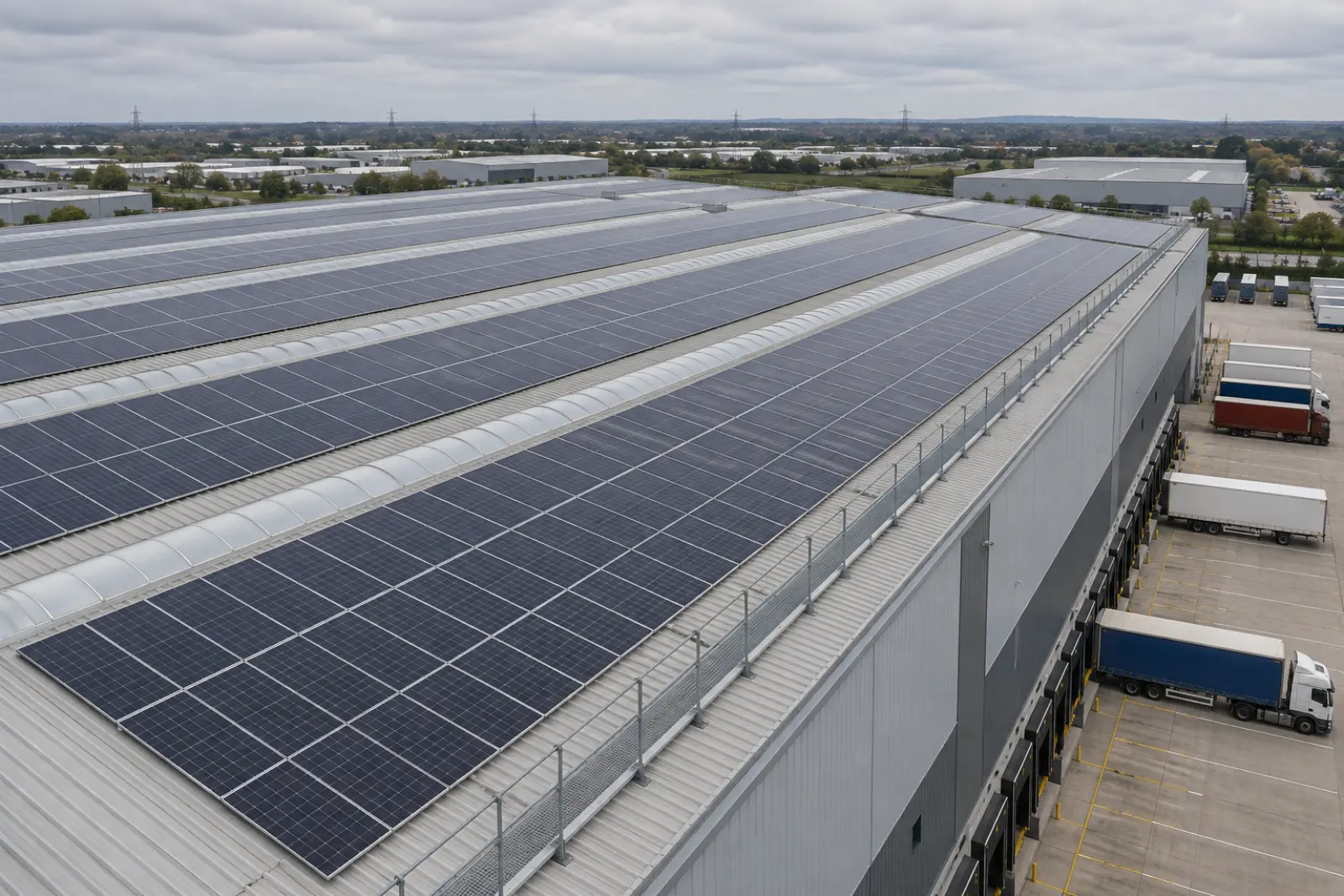

A large distribution warehouse roof covered in rows of solar panels, with rooflight strips between the runs and loading bays below

How a warehouse solar system works

A warehouse solar system is a rooftop photovoltaic array that converts daylight into electricity your building consumes before it draws anything from the grid. The solar panels sit on the existing warehouse roof, the inverters convert direct current into the alternating current your distribution board already uses, and whatever the site does not consume is exported under a Smart Export Guarantee tariff.

A solar system is not a generator and it is not a substitute for your energy supply contract. Solar panels reduce the volume of energy you buy during daylight hours. Your energy bills fall in proportion to what the building uses on site, which is why the same array produces a very different result on a single-shift unit and a chilled distribution centre running around the clock.

Rising energy costs are what bring most warehouses to solar in the first place, but three things decide whether the project is worth doing: the roof, the load profile and the connection. We look at all three before anyone quotes, and we will tell you when the answer is no.

RATIO
4.9 m²
of usable roof per kWp installed
SOURCE
Smart Export Guarantee, Ofgem
FIG. 1 Where the electricity goes
PANELS the array on your roof DC INVERTER DC becomes AC AC DISTRIBUTION BOARD USED ON SITE displaces your day rate EXPORTED paid at the SEG rate GRID the split is measured from your meter, never assumed
Self-consumption decides the payback, which is why the survey measures your half-hourly demand against modelled generation before anyone quotes.

Why warehouse roofs suit solar better than most buildings

Warehouses carry the largest uninterrupted roof space of any commercial building type, typically at a shallow pitch of six degrees or less, with the structure already designed to carry a snow load. That combination makes the large flat roofs on warehouses unusually cheap to build on: long unbroken runs of panels, few penetrations, no complex shading from neighbouring buildings.

Roof space is the constraint that sets the solar system size on warehouses. A warehouse of 5,000 square metres has room for several hundred kWp once rooflights, walkways, plant and setbacks come out of the gross area. Each panel occupies roughly 2.2 square metres and carries about 0.45 kWp, so a kWp needs roughly 4.9 square metres of panel, and a sensible design leaves access around the array rather than filling the deck to the edge.

Warehouses with high energy demand benefit most, and that is the single best predictor of a strong result. A distribution unit with chillers, conveyors, compressors or vehicle charging draws power through exactly the hours the roof is generating, so self-consumption is high and very little is exported at the lower rate.

WATCH FOR
Asbestos cement sheet, identified rather than worked around
FIG. 2 A typical unit, drawn
96 m phase 1
Drawing Typical distribution unit
Roof 96 x 62 m
Array 420 kWp
Yield 380,000 kWh/yr
Scale 1:500 / Rev A

Illustrative layout for a unit of this size. Your own figures come from the roof survey.

Rooflight strips and walkways stay clear, so the array stops short of the gross roof area. Phase one is the block a first quotation usually prices.
FIG. 3 Gross roof to usable array
gross roof 5,000 m²
usable 3,400 m²
rooflightsplant and ductswalkways, setbacks usable roof
3,400 m² ÷ 4.9 m² per kWp = 694 kWp
Deduction proportions are illustrative of a typical unit. Yours are measured on the day.

The site assessment we run before any number is quoted

A site assessment is a structural, electrical and commercial survey that establishes what your roof can physically carry and what the resulting system would be worth. It is free, it carries no obligation, and the document is yours whoever ends up installing.

ITEM
WHAT WE MEASURE
WHY IT DECIDES THE SCHEME
OUTPUT
A
Structure and covering
Cladding profile, purlin centres, sheet condition and remaining life, and the additional dead load the frame will take. Asbestos is identified, not avoided.
loading statement
B
Usable area
Rooflights, plant, walkways and shading come out of the gross area first. What remains sets the array size in kWp, which is the only number worth quoting against.
array layout, kWp
C
Your load profile
Half-hourly consumption against modelled generation, so the split between what you use on site and what you export is measured rather than assumed.
self-consumption share
D
Connection
The network operator for your area, the export limit worth applying for, and whether the connection runs under G98 or G99.
G99 application

The structural half covers the cladding profile, purlin centres, sheet condition and remaining life, and the additional dead load the frame will take. The electrical half covers your incoming supply, the switchgear, the metering position and the export limit worth applying for. The commercial half is your half-hourly consumption against modelled generation for your latitude.

Asbestos cement sheet is identified rather than worked around. Where a roof is near the end of its life, re-sheeting first is almost always cheaper than removing and refitting an array in five years.

397
towns with a modelled yield figure
324
kWh per kWp between the best and worst of them
886
kWh per kWp a year, the mean across them
48
counties we arrange surveys in
Yield modelled with EU PVGIS v5.2 for each town, not averaged across the country.

How much energy the roof produces

Annual generation is the product of the solar system size and the energy yield for your location, expressed in kWh for every kWp installed. Across the towns we cover, modelled yield runs from roughly 750 to 950 kWh per kWp a year, and every location page on this site shows the figure for that town alongside its source.

Value follows consumption rather than generation. Electricity you use on site displaces your day rate, which is the highest-value outcome. Electricity you export earns a Smart Export Guarantee rate from your chosen supplier, which is materially lower. The split between the two is the single biggest lever on payback, and it is measurable from your existing meter data rather than assumed.

Battery storage shifts that balance. Adding storage lets a site hold generation from the middle of the day and use it in the early evening, which raises self-consumption on buildings that would otherwise export. Whether that is worth the capital depends on the shape of your load, so we model it as an option rather than selling it as standard.

SOURCE
EU PVGIS v5.2, SARAH3, 10 degree pitch, 14 percent system loss
FIG. 4 Modelled yield across the towns we cover

Modelled yield across the towns we cover

One dot per town, positioned at its centroid and shaded by modelled annual yield in kWh per kWp. Source: EU PVGIS v5.2.

Bedford, Bedfordshire: 900 kWh per kWp Biggleswade, Bedfordshire: 902 kWh per kWp Dunstable, Bedfordshire: 893 kWh per kWp Flitwick, Bedfordshire: 899 kWh per kWp Leighton Buzzard, Bedfordshire: 892 kWh per kWp Luton, Bedfordshire: 899 kWh per kWp Sandy, Bedfordshire: 902 kWh per kWp Bracknell, Berkshire: 891 kWh per kWp Maidenhead, Berkshire: 905 kWh per kWp Newbury, Berkshire: 904 kWh per kWp Reading, Berkshire: 907 kWh per kWp Slough, Berkshire: 903 kWh per kWp Thatcham, Berkshire: 910 kWh per kWp Windsor, Berkshire: 901 kWh per kWp Wokingham, Berkshire: 898 kWh per kWp Bedminster, Bristol: 906 kWh per kWp Bishopston, Bristol: 908 kWh per kWp Filton, Bristol: 895 kWh per kWp Hengrove, Bristol: 903 kWh per kWp Keynsham, Bristol: 902 kWh per kWp Amersham, Buckinghamshire: 890 kWh per kWp Aylesbury, Buckinghamshire: 881 kWh per kWp Beaconsfield, Buckinghamshire: 892 kWh per kWp Buckingham, Buckinghamshire: 893 kWh per kWp Chesham, Buckinghamshire: 891 kWh per kWp High Wycombe, Buckinghamshire: 892 kWh per kWp Marlow, Buckinghamshire: 904 kWh per kWp Princes Risborough, Buckinghamshire: 883 kWh per kWp Cambridge, Cambridgeshire: 906 kWh per kWp Ely, Cambridgeshire: 904 kWh per kWp Huntingdon, Cambridgeshire: 908 kWh per kWp March, Cambridgeshire: 900 kWh per kWp Peterborough, Cambridgeshire: 898 kWh per kWp St Ives, Cambridgeshire: 906 kWh per kWp St Neots, Cambridgeshire: 898 kWh per kWp Wisbech, Cambridgeshire: 905 kWh per kWp Canton, Cardiff: 936 kWh per kWp Cathays, Cardiff: 908 kWh per kWp Pontcanna, Cardiff: 936 kWh per kWp Splott, Cardiff: 908 kWh per kWp Chester, Cheshire: 836 kWh per kWp Crewe, Cheshire: 835 kWh per kWp Ellesmere Port, Cheshire: 835 kWh per kWp Macclesfield, Cheshire: 790 kWh per kWp Nantwich, Cheshire: 840 kWh per kWp Northwich, Cheshire: 832 kWh per kWp Warrington, Cheshire: 828 kWh per kWp Wilmslow, Cheshire: 801 kWh per kWp Bodmin, Cornwall: 929 kWh per kWp Bude, Cornwall: 929 kWh per kWp Camborne, Cornwall: 921 kWh per kWp Falmouth, Cornwall: 943 kWh per kWp Newquay, Cornwall: 940 kWh per kWp Penzance, Cornwall: 979 kWh per kWp St Austell, Cornwall: 936 kWh per kWp Truro, Cornwall: 940 kWh per kWp Bishop Auckland, County Durham: 817 kWh per kWp Chester-le-Street, County Durham: 821 kWh per kWp Consett, County Durham: 811 kWh per kWp Durham, County Durham: 823 kWh per kWp Newton Aycliffe, County Durham: 819 kWh per kWp Peterlee, County Durham: 845 kWh per kWp Barrow-in-Furness, Cumbria: 893 kWh per kWp Carlisle, Cumbria: 806 kWh per kWp Kendal, Cumbria: 793 kWh per kWp Penrith, Cumbria: 794 kWh per kWp Whitehaven, Cumbria: 855 kWh per kWp Workington, Cumbria: 835 kWh per kWp Belper, Derbyshire: 850 kWh per kWp Buxton, Derbyshire: 805 kWh per kWp Chesterfield, Derbyshire: 843 kWh per kWp Derby, Derbyshire: 862 kWh per kWp Ilkeston, Derbyshire: 855 kWh per kWp Long Eaton, Derbyshire: 866 kWh per kWp Matlock, Derbyshire: 844 kWh per kWp Swadlincote, Derbyshire: 856 kWh per kWp Barnstaple, Devon: 908 kWh per kWp Exeter, Devon: 938 kWh per kWp Exmouth, Devon: 937 kWh per kWp Newton Abbot, Devon: 943 kWh per kWp Paignton, Devon: 961 kWh per kWp Plymouth, Devon: 960 kWh per kWp Tiverton, Devon: 903 kWh per kWp Torquay, Devon: 937 kWh per kWp Bournemouth, Dorset: 971 kWh per kWp Bridport, Dorset: 971 kWh per kWp Christchurch, Dorset: 981 kWh per kWp Dorchester, Dorset: 985 kWh per kWp Poole, Dorset: 965 kWh per kWp Sherborne, Dorset: 924 kWh per kWp Weymouth, Dorset: 1006 kWh per kWp Wimborne, Dorset: 964 kWh per kWp Beverley, East Riding of Yorkshire: 864 kWh per kWp Bridlington, East Riding of Yorkshire: 859 kWh per kWp Driffield, East Riding of Yorkshire: 870 kWh per kWp Goole, East Riding of Yorkshire: 858 kWh per kWp Hessle, East Riding of Yorkshire: 868 kWh per kWp Hull, East Riding of Yorkshire: 867 kWh per kWp Basildon, Essex: 933 kWh per kWp Braintree, Essex: 932 kWh per kWp Brentwood, Essex: 913 kWh per kWp Canvey Island, Essex: 945 kWh per kWp Chelmsford, Essex: 930 kWh per kWp Clacton-on-Sea, Essex: 973 kWh per kWp Colchester, Essex: 953 kWh per kWp Grays, Essex: 927 kWh per kWp Harlow, Essex: 908 kWh per kWp Southend-on-Sea, Essex: 942 kWh per kWp Cheltenham, Gloucestershire: 879 kWh per kWp Cirencester, Gloucestershire: 892 kWh per kWp Gloucester, Gloucestershire: 870 kWh per kWp Lydney, Gloucestershire: 905 kWh per kWp Stroud, Gloucestershire: 887 kWh per kWp Tewkesbury, Gloucestershire: 878 kWh per kWp Barking, Greater London: 909 kWh per kWp Barnet, Greater London: 899 kWh per kWp Battersea, Greater London: 908 kWh per kWp Bermondsey, Greater London: 907 kWh per kWp Bexley, Greater London: 916 kWh per kWp Brixton, Greater London: 906 kWh per kWp Bromley, Greater London: 908 kWh per kWp Camden, Greater London: 902 kWh per kWp Chelsea, Greater London: 908 kWh per kWp City of London, Greater London: 903 kWh per kWp Clapham, Greater London: 906 kWh per kWp Croydon, Greater London: 895 kWh per kWp Ealing, Greater London: 905 kWh per kWp Enfield, Greater London: 898 kWh per kWp Fulham, Greater London: 910 kWh per kWp Hackney, Greater London: 903 kWh per kWp Hammersmith, Greater London: 910 kWh per kWp Hampstead, Greater London: 900 kWh per kWp Harrow, Greater London: 902 kWh per kWp Havering, Greater London: 908 kWh per kWp Highgate, Greater London: 900 kWh per kWp Hillingdon, Greater London: 904 kWh per kWp Hounslow, Greater London: 910 kWh per kWp Ilford, Greater London: 909 kWh per kWp Islington, Greater London: 902 kWh per kWp Kensington, Greater London: 903 kWh per kWp Kentish Town, Greater London: 900 kWh per kWp Kingston, Greater London: 987 kWh per kWp Lewisham, Greater London: 904 kWh per kWp Leytonstone, Greater London: 903 kWh per kWp Marylebone, Greater London: 902 kWh per kWp Mayfair, Greater London: 902 kWh per kWp Merton, Greater London: 902 kWh per kWp Notting Hill, Greater London: 906 kWh per kWp Redbridge, Greater London: 903 kWh per kWp Richmond, Greater London: 910 kWh per kWp Shoreditch, Greater London: 903 kWh per kWp Southwark, Greater London: 903 kWh per kWp Stratford, Greater London: 904 kWh per kWp Sutton, Greater London: 847 kWh per kWp Tottenham, Greater London: 902 kWh per kWp Tower Hamlets, Greater London: 976 kWh per kWp Vauxhall, Greater London: 906 kWh per kWp Walthamstow, Greater London: 898 kWh per kWp Wandsworth, Greater London: 908 kWh per kWp Wembley, Greater London: 901 kWh per kWp Westminster, Greater London: 902 kWh per kWp Whitechapel, Greater London: 903 kWh per kWp Wimbledon, Greater London: 904 kWh per kWp Woolwich, Greater London: 912 kWh per kWp Altrincham, Greater Manchester: 816 kWh per kWp Ashton-under-Lyne, Greater Manchester: 769 kWh per kWp Bolton, Greater Manchester: 801 kWh per kWp Bury, Greater Manchester: 788 kWh per kWp Manchester, Greater Manchester: 788 kWh per kWp Oldham, Greater Manchester: 771 kWh per kWp Rochdale, Greater Manchester: 771 kWh per kWp Salford, Greater Manchester: 794 kWh per kWp Stockport, Greater Manchester: 785 kWh per kWp Wigan, Greater Manchester: 828 kWh per kWp Bangor, Gwynedd: 733 kWh per kWp Bethesda, Gwynedd: 704 kWh per kWp Caernarfon, Gwynedd: 798 kWh per kWp Dolgellau, Gwynedd: 746 kWh per kWp Porthmadog, Gwynedd: 820 kWh per kWp Pwllheli, Gwynedd: 887 kWh per kWp Aldershot, Hampshire: 903 kWh per kWp Andover, Hampshire: 915 kWh per kWp Basingstoke, Hampshire: 906 kWh per kWp Eastleigh, Hampshire: 942 kWh per kWp Fareham, Hampshire: 980 kWh per kWp Farnborough, Hampshire: 903 kWh per kWp Fleet, Hampshire: 904 kWh per kWp Portsmouth, Hampshire: 987 kWh per kWp Southampton, Hampshire: 950 kWh per kWp Winchester, Hampshire: 917 kWh per kWp Bishop's Stortford, Hertfordshire: 911 kWh per kWp Borehamwood, Hertfordshire: 895 kWh per kWp Harpenden, Hertfordshire: 896 kWh per kWp Hatfield, Hertfordshire: 901 kWh per kWp Hemel Hempstead, Hertfordshire: 895 kWh per kWp Hertford, Hertfordshire: 901 kWh per kWp St Albans, Hertfordshire: 901 kWh per kWp Stevenage, Hertfordshire: 901 kWh per kWp Watford, Hertfordshire: 898 kWh per kWp Welwyn Garden City, Hertfordshire: 899 kWh per kWp Ashford, Kent: 983 kWh per kWp Canterbury, Kent: 961 kWh per kWp Chatham, Kent: 920 kWh per kWp Dartford, Kent: 915 kWh per kWp Dover, Kent: 972 kWh per kWp Folkestone, Kent: 990 kWh per kWp Gravesend, Kent: 926 kWh per kWp Maidstone, Kent: 930 kWh per kWp Margate, Kent: 990 kWh per kWp Sevenoaks, Kent: 920 kWh per kWp Tonbridge, Kent: 927 kWh per kWp Tunbridge Wells, Kent: 930 kWh per kWp Accrington, Lancashire: 783 kWh per kWp Blackburn, Lancashire: 782 kWh per kWp Blackpool, Lancashire: 888 kWh per kWp Burnley, Lancashire: 774 kWh per kWp Chorley, Lancashire: 787 kWh per kWp Lancaster, Lancashire: 797 kWh per kWp Lytham St Anne's, Lancashire: 878 kWh per kWp Preston, Lancashire: 805 kWh per kWp Coalville, Leicestershire: 863 kWh per kWp Hinckley, Leicestershire: 870 kWh per kWp Leicester, Leicestershire: 874 kWh per kWp Loughborough, Leicestershire: 868 kWh per kWp Market Harborough, Leicestershire: 891 kWh per kWp Melton Mowbray, Leicestershire: 879 kWh per kWp Wigston, Leicestershire: 877 kWh per kWp Boston, Lincolnshire: 906 kWh per kWp Gainsborough, Lincolnshire: 861 kWh per kWp Grantham, Lincolnshire: 886 kWh per kWp Lincoln, Lincolnshire: 882 kWh per kWp Skegness, Lincolnshire: 894 kWh per kWp Sleaford, Lincolnshire: 898 kWh per kWp Spalding, Lincolnshire: 902 kWh per kWp Stamford, Lincolnshire: 896 kWh per kWp Birkenhead, Merseyside: 855 kWh per kWp Bootle, Merseyside: 853 kWh per kWp Liverpool, Merseyside: 848 kWh per kWp Southport, Merseyside: 877 kWh per kWp St Helens, Merseyside: 830 kWh per kWp Wallasey, Merseyside: 862 kWh per kWp Caerleon, Newport: 905 kWh per kWp Cwmbrân, Newport: 903 kWh per kWp Maindee, Newport: 910 kWh per kWp Pontypool, Newport: 887 kWh per kWp Attleborough, Norfolk: 906 kWh per kWp Cromer, Norfolk: 923 kWh per kWp Dereham, Norfolk: 898 kWh per kWp Great Yarmouth, Norfolk: 920 kWh per kWp King's Lynn, Norfolk: 897 kWh per kWp Norwich, Norfolk: 904 kWh per kWp Thetford, Norfolk: 897 kWh per kWp Wymondham, Norfolk: 906 kWh per kWp Harrogate, North Yorkshire: 831 kWh per kWp Knaresborough, North Yorkshire: 833 kWh per kWp Northallerton, North Yorkshire: 817 kWh per kWp Ripon, North Yorkshire: 834 kWh per kWp Scarborough, North Yorkshire: 859 kWh per kWp Skipton, North Yorkshire: 799 kWh per kWp Whitby, North Yorkshire: 849 kWh per kWp York, North Yorkshire: 840 kWh per kWp Corby, Northamptonshire: 892 kWh per kWp Daventry, Northamptonshire: 890 kWh per kWp Kettering, Northamptonshire: 895 kWh per kWp Northampton, Northamptonshire: 893 kWh per kWp Rushden, Northamptonshire: 900 kWh per kWp Towcester, Northamptonshire: 897 kWh per kWp Wellingborough, Northamptonshire: 896 kWh per kWp Alnwick, Northumberland: 840 kWh per kWp Berwick-upon-Tweed, Northumberland: 827 kWh per kWp Blyth, Northumberland: 848 kWh per kWp Cramlington, Northumberland: 825 kWh per kWp Hexham, Northumberland: 803 kWh per kWp Morpeth, Northumberland: 824 kWh per kWp Arnold, Nottinghamshire: 857 kWh per kWp Mansfield, Nottinghamshire: 852 kWh per kWp Newark, Nottinghamshire: 874 kWh per kWp Nottingham, Nottinghamshire: 859 kWh per kWp Retford, Nottinghamshire: 869 kWh per kWp West Bridgford, Nottinghamshire: 864 kWh per kWp Worksop, Nottinghamshire: 842 kWh per kWp Abingdon, Oxfordshire: 904 kWh per kWp Banbury, Oxfordshire: 891 kWh per kWp Bicester, Oxfordshire: 895 kWh per kWp Didcot, Oxfordshire: 913 kWh per kWp Henley-on-Thames, Oxfordshire: 899 kWh per kWp Oxford, Oxfordshire: 895 kWh per kWp Thame, Oxfordshire: 891 kWh per kWp Witney, Oxfordshire: 902 kWh per kWp Brecon, Powys: 828 kWh per kWp Builth Wells, Powys: 830 kWh per kWp Hay on Wye, Powys: 838 kWh per kWp Llandrindod Wells, Powys: 825 kWh per kWp Newtown, Powys: 820 kWh per kWp Welshpool, Powys: 831 kWh per kWp Bridgnorth, Shropshire: 856 kWh per kWp Ludlow, Shropshire: 860 kWh per kWp Market Drayton, Shropshire: 842 kWh per kWp Oswestry, Shropshire: 855 kWh per kWp Shrewsbury, Shropshire: 852 kWh per kWp Bath, Somerset: 904 kWh per kWp Bridgwater, Somerset: 931 kWh per kWp Frome, Somerset: 894 kWh per kWp Glastonbury, Somerset: 913 kWh per kWp Taunton, Somerset: 911 kWh per kWp Wells, Somerset: 899 kWh per kWp Weston-super-Mare, Somerset: 934 kWh per kWp Yeovil, Somerset: 923 kWh per kWp Barnsley, South Yorkshire: 839 kWh per kWp Doncaster, South Yorkshire: 856 kWh per kWp Mexborough, South Yorkshire: 847 kWh per kWp Rotherham, South Yorkshire: 835 kWh per kWp Sheffield, South Yorkshire: 830 kWh per kWp Wombwell, South Yorkshire: 838 kWh per kWp Burton upon Trent, Staffordshire: 852 kWh per kWp Cannock, Staffordshire: 842 kWh per kWp Lichfield, Staffordshire: 857 kWh per kWp Newcastle-under-Lyme, Staffordshire: 826 kWh per kWp Stafford, Staffordshire: 842 kWh per kWp Stoke-on-Trent, Staffordshire: 833 kWh per kWp Tamworth, Staffordshire: 857 kWh per kWp Bury St Edmunds, Suffolk: 912 kWh per kWp Felixstowe, Suffolk: 950 kWh per kWp Ipswich, Suffolk: 933 kWh per kWp Leiston, Suffolk: 956 kWh per kWp Lowestoft, Suffolk: 938 kWh per kWp Newmarket, Suffolk: 905 kWh per kWp Stowmarket, Suffolk: 922 kWh per kWp Sudbury, Suffolk: 923 kWh per kWp Camberley, Surrey: 900 kWh per kWp Dorking, Surrey: 916 kWh per kWp Epsom, Surrey: 900 kWh per kWp Farnham, Surrey: 903 kWh per kWp Guildford, Surrey: 908 kWh per kWp Leatherhead, Surrey: 910 kWh per kWp Redhill, Surrey: 916 kWh per kWp Staines, Surrey: 903 kWh per kWp Weybridge, Surrey: 905 kWh per kWp Woking, Surrey: 905 kWh per kWp Bognor Regis, Sussex: 1000 kWh per kWp Brighton, Sussex: 1015 kWh per kWp Chichester, Sussex: 1028 kWh per kWp Crawley, Sussex: 915 kWh per kWp Eastbourne, Sussex: 1017 kWh per kWp Hastings, Sussex: 989 kWh per kWp Haywards Heath, Sussex: 957 kWh per kWp Horsham, Sussex: 935 kWh per kWp Lewes, Sussex: 1028 kWh per kWp Worthing, Sussex: 999 kWh per kWp Morriston, Swansea: 899 kWh per kWp Mumbles, Swansea: 921 kWh per kWp Neath, Swansea: 881 kWh per kWp Sketty, Swansea: 921 kWh per kWp Gateshead, Tyne and Wear: 822 kWh per kWp Newcastle, Tyne and Wear: 806 kWh per kWp North Shields, Tyne and Wear: 833 kWh per kWp South Shields, Tyne and Wear: 849 kWh per kWp Sunderland, Tyne and Wear: 849 kWh per kWp Washington, Tyne and Wear: 828 kWh per kWp Bedworth, Warwickshire: 866 kWh per kWp Kenilworth, Warwickshire: 877 kWh per kWp Leamington Spa, Warwickshire: 880 kWh per kWp Nuneaton, Warwickshire: 866 kWh per kWp Rugby, Warwickshire: 882 kWh per kWp Stratford-upon-Avon, Warwickshire: 893 kWh per kWp Warwick, Warwickshire: 880 kWh per kWp Birmingham, West Midlands: 854 kWh per kWp Coventry, West Midlands: 868 kWh per kWp Dudley, West Midlands: 845 kWh per kWp Solihull, West Midlands: 860 kWh per kWp Sutton Coldfield, West Midlands: 852 kWh per kWp Walsall, West Midlands: 851 kWh per kWp West Bromwich, West Midlands: 852 kWh per kWp Wolverhampton, West Midlands: 839 kWh per kWp Bradford, West Yorkshire: 817 kWh per kWp Dewsbury, West Yorkshire: 835 kWh per kWp Halifax, West Yorkshire: 812 kWh per kWp Huddersfield, West Yorkshire: 811 kWh per kWp Ilkley, West Yorkshire: 813 kWh per kWp Leeds, West Yorkshire: 830 kWh per kWp Pontefract, West Yorkshire: 846 kWh per kWp Wakefield, West Yorkshire: 837 kWh per kWp Chippenham, Wiltshire: 894 kWh per kWp Devizes, Wiltshire: 906 kWh per kWp Marlborough, Wiltshire: 900 kWh per kWp Melksham, Wiltshire: 912 kWh per kWp Salisbury, Wiltshire: 923 kWh per kWp Swindon, Wiltshire: 899 kWh per kWp Trowbridge, Wiltshire: 909 kWh per kWp Warminster, Wiltshire: 912 kWh per kWp Bromsgrove, Worcestershire: 872 kWh per kWp Droitwich, Worcestershire: 877 kWh per kWp Evesham, Worcestershire: 876 kWh per kWp Kidderminster, Worcestershire: 866 kWh per kWp Malvern, Worcestershire: 875 kWh per kWp Redditch, Worcestershire: 877 kWh per kWp Worcester, Worcestershire: 882 kWh per kWp
kWh per kWp a year
  • 704
  • 758
  • 812
  • 866
  • 920
  • 974

The spread between the best and worst town on this map is 324 kWh per kWp, which is about 46 percent. On a 500 kWp array that is roughly 162,000 kWh a year of difference for the same money spent.

Source: EU PVGIS v5.2

How to measure what a warehouse array saves

The saving from a warehouse solar system is the energy you no longer buy, valued at the rate you would have paid for it. That is the honest way to state it: solar panels do not generate income for most warehouses, they remove a line of energy cost, and the return is the size of that removal set against what the system cost to install.

Two warehouses with identical solar panels and identical roofs can show very different returns. A unit drawing power steadily through the day converts almost all of its generation into avoided energy bills. A unit that runs a single early shift exports the afternoon, and export earns the Smart Export Guarantee rate rather than the day rate. The system design cannot fix a load profile, so we measure yours first.

Returns also move with the price of energy itself. Every business energy contract renewal changes the value of the same kWh, which is why we model the saving against your current unit rate and then show what happens if that rate rises or falls rather than assuming a single number holds for twenty years.

When a warehouse should add battery storage

A battery is a storage system that holds generation the building cannot use at the moment it is produced and releases it later. On a warehouse roof, batteries turn exported energy into consumed energy, which raises the value of every kWh the panels make.

A BATTERY EARNS ITS PLACE WHEN
  • The load peaks after the array has stopped producing, on an early shift or a late despatch run
  • The building shuts at weekends while the roof keeps generating
  • Vehicle charging runs into the evening
  • Peak demand charges are a visible line on the bill
IT ADDS COST WITHOUT SAVING WHEN
  • The site already consumes almost everything the roof makes during the working day
  • The load is steady from early morning to late afternoon
  • The lease is too short to see the storage pay for itself

Batteries earn their place on sites with a mismatch between generation and demand: early shifts, weekend shutdowns, or a load that peaks after the solar system has stopped producing. They earn far less on a site already consuming everything the roof makes, where the panels alone do the work and the storage adds cost without adding much saving.

Storage also opens other uses: holding cheap overnight energy, shaving peak demand charges, or supporting vehicle charging. Those cases are worth modelling separately, and we size any battery against twelve months of real data rather than a rule of thumb.

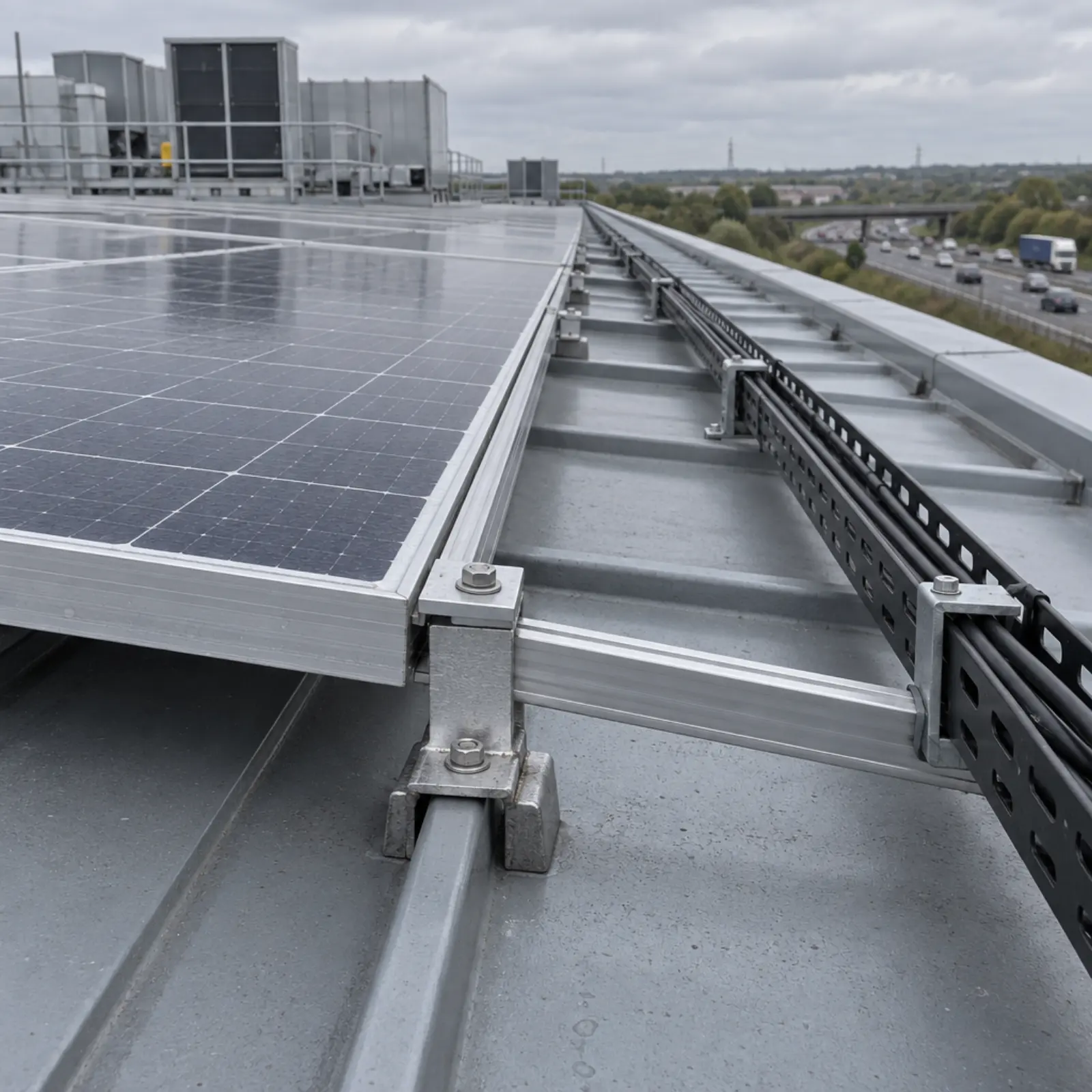

Close view of a mounting rail clamped to a standing-seam metal roof, with cable tray running alongside a row of panels
Mounting rail clamped to a standing-seam roof, with the cable route run alongside rather than across the sheet.

The system design decisions that matter

System design is the process of matching solar panels, inverters and mounting method to one specific warehouse roof. The design fixes the array size in kWp, the string layout, the inverter sizing ratio and the fixing detail for your cladding profile.

Panel choice matters less than most manufacturers would like. Solar panels from any tier-one manufacturer perform within a few percent of each other, and the warranty terms are more informative than the datasheet. Mounting choice matters a great deal, because that is what touches your roof: seam clamps on standing seam, crown fixings on trapezoidal sheet, ballasted frames on membrane.

Inverters carry the shortest life in the system. Plan on replacing them once inside the array's working life and treat that as a maintenance cost rather than a surprise.

The installation process, step by step

The installation process is a fixed sequence that runs from survey to commissioning, and on a commercial roof it is mostly paperwork and access rather than panels.

FIG. 5 The sequence, and where it waits
01
survey
02
design and layout
03
G99 application
04
install
05
commission and certify
enquiry first generation

The connection is the long pole, which is why we submit it early rather than after a contract is signed. Anything above 3.68 kW per phase runs under G99, and the network operator sets the export limit.

Solar installation starts with the survey and the design. Then the grid application: anything above 3.68 kW per phase connects under G99, and the network operator sets the export limit. Then scaffold or mobile access, mounting, module installation, DC and AC electrical work, and the connection into your switchgear. Then commissioning, testing of the solar panels and inverters, the MCS certificate and handover of the operation and maintenance file.

Installation on a mid-sized warehouse is typically a matter of weeks on site once the connection is agreed. The connection is the long pole, which is why we submit it early rather than after the contract is signed.

Tell us about the roof

Send the postcode and the rough footprint. We come back with what the roof can carry, what it would generate against your consumption, and what the three funding routes look like on those numbers.

No survey fee, no obligation. Lenzie Consulting Ltd arranges the survey and passes your details to our MCS-certified installation partner so they can quote.

We pass your details to our MCS-certified installation partner so they can quote. Read the privacy notice.

Questions we get asked before a survey

What is the 20 percent rule for solar panels?
The 20 percent rule is a phrase that circulates online rather than a rule in UK legislation or the grid codes. Nothing in the Building Regulations, the DNO connection process or HMRC guidance sets a 20 percent threshold for a rooftop array. What does constrain a warehouse system is the structural capacity of the roof, the usable area once rooflights and plant are excluded, and the export limit your network operator agrees under G98 or G99.
How much does commercial solar cost per kW?
Price per kWp falls as the array grows, because the fixed costs of access, design, grid application and commissioning spread across more panels. A quotation covers modules, inverters, mounting suited to your cladding profile, cabling, the DNO application and commissioning. We ask our partner to break the quote into those lines so you can see what varies with roof condition and what does not. We do not publish a price per kWp, because any figure quoted without seeing the roof is a guess.
Are solar panels worth it on a warehouse roof?
Solar is worth it on a warehouse roof in proportion to how much of the generation the building uses on site. A unit running chillers, automation or charging through the working day uses most of what the roof produces and displaces electricity at its day rate. A unit that is dark from mid-afternoon exports more, and export is paid at a lower rate under the Smart Export Guarantee. The survey measures your half-hourly consumption against modelled generation before anyone quotes.
Do you need planning permission for solar panels on a commercial building?
Roof-mounted panels on a commercial building in England usually fall under permitted development, subject to limits on projection above the roof plane and to the building not being listed or in a conservation area. Ground-mounted arrays and larger installations have their own thresholds. We confirm the position with the local planning authority for your site before the design is finalised.
What about the roof warranty and the cladding?
The mounting method is what decides whether a roof warranty survives. Seam clamps grip a standing seam without piercing it, which usually leaves the warranty intact. Trapezoidal sheet is clamped into the crown or through-fixed with a sealed washer, and the right choice depends on the profile, the purlin centres and the age of the covering. Where a roof is near the end of its life, re-sheeting first is usually cheaper than removing and refitting an array later.
How many solar panels fit on a warehouse roof?
The number of solar panels a warehouse roof takes is set by the usable area rather than the footprint. As a rule of thumb, each panel is about 2.2 square metres and around 0.45 kWp, so a kWp needs roughly 4.9 square metres, so a 5,000 square metre roof with 70 percent usable area carries roughly 1,500 panels and about 700 kWp. The survey replaces that arithmetic with a measured layout, because rooflights, plant, walkways and setbacks vary enormously between buildings.
Do solar panels work through a British winter?
Solar panels generate all year, but not evenly. On a typical northern English roof, December output per kWp is roughly a sixth of May output, and every location page on this site shows the month by month profile for that town. That shape is why we size a system against summer daytime demand, then look at whether storage or a revised export limit is worth adding for the darker months rather than oversizing the array.
Who installs the system, and what does your role cover?
Installation is carried out by our MCS-certified partner, who holds the contract with you and issues the certificate. Our role covers the survey, the array design, the grid application, the funding comparison and the paperwork in between. We are not the installer, we do not hold MCS certification ourselves, and we say so plainly because the distinction matters when you are checking who is responsible for what.
Can a warehouse add battery storage later?
Battery storage can be added later, and on many sites that is the sensible order. Sizing a battery needs real generation and consumption data, and after twelve months of an array running you have both. Designing the electrical infrastructure with storage in mind at the outset costs very little and keeps the option open.
